Bridge inspection truck DB240
Car Specifications
DB240

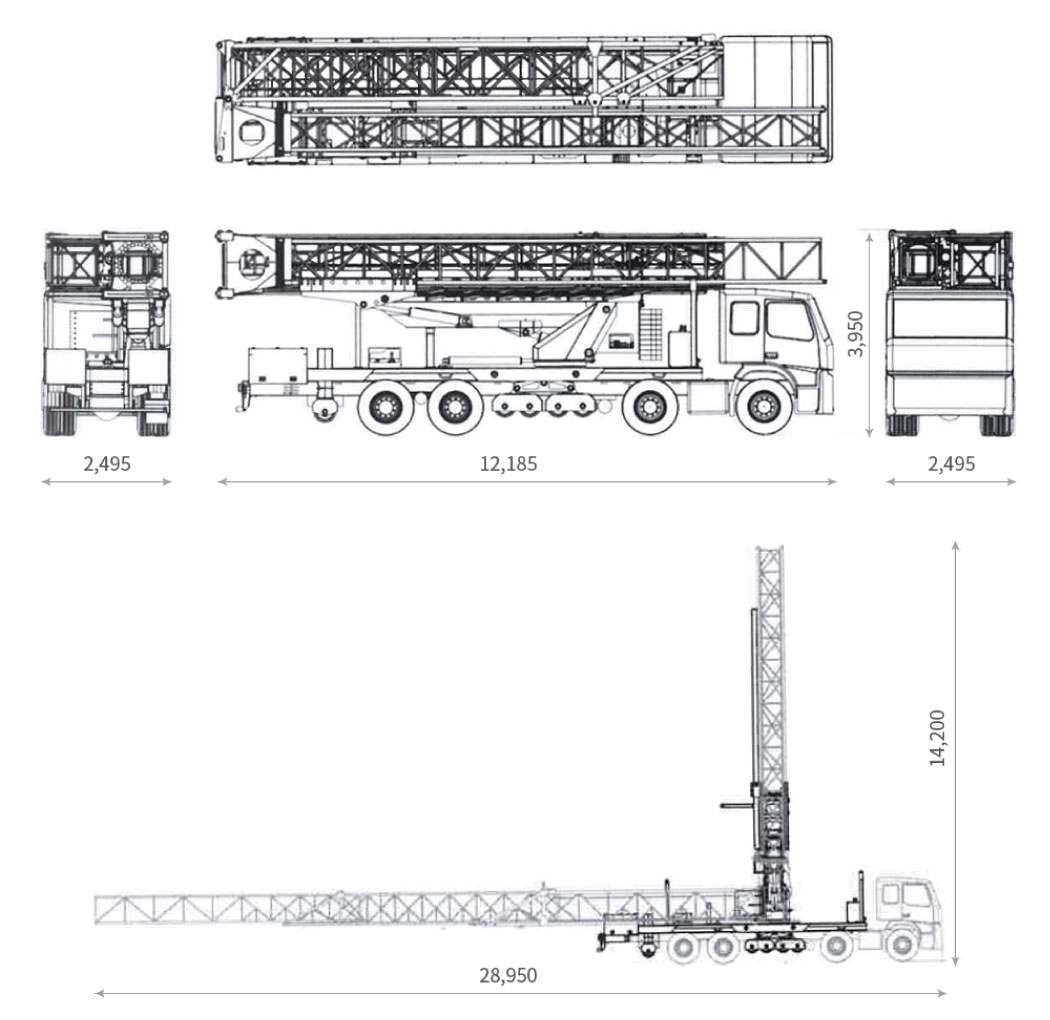

Length x Width x Height (mm)
12,185 x 2,495 x 3,950
Rated Load of Boarding Platform
Max Load When Fully Extended
Max Load When Fully Retracted
2.9m
9.30m
Working Range
Horizontal (Platform right end to left end)
Vertical (Vertical boom height)
600kg
300kg
Rotation Range
Turntable
Boarding Platform
23,500kg
12.000m
Max Sidewalk Overhang (Safety Distance)
2.65m
Maximum Working Depth (Below)
9.30m
Maximum Platform Load Capacity
600kg
Max Soundproof Wall Overhang (Safety Distance)
4.00m
Hydraulic Oil Type / Capacity (ℓ)
IGS VG46 / 230 ※ However, including the amount filled into hydraulic cylinders, the initial filling requires approximately 400–500ℓ.
