Bridge  DS Steel Composite Girder  Structure and Safety Review

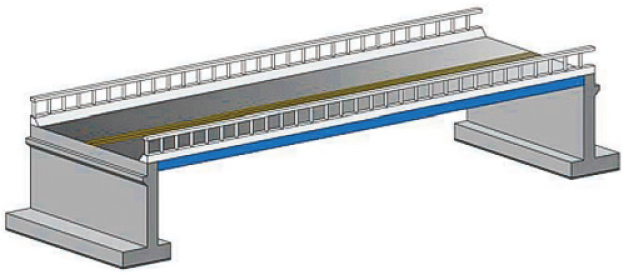

Structure of Composite Rigid Frame Bridge

Structure of Composite Rigid Frame Bridge

Key Points of the Composite Rigid Frame Bridge

Key Points of Composite Rigid Frame Bridge

Key Points of the Composite Rigid Frame Bridge

- Install connection bearings at the junction between the abutment and composite girder

- During erection, place the D.S. composite girder simply on the bearing installed on the wall

- Configure a key plate to connect the wall and girder

- Connect the preflex composite girder simply to the top of the wall during erection

- Install haunches at the upper structure corner within the girder height to enable ultra-low profile application
